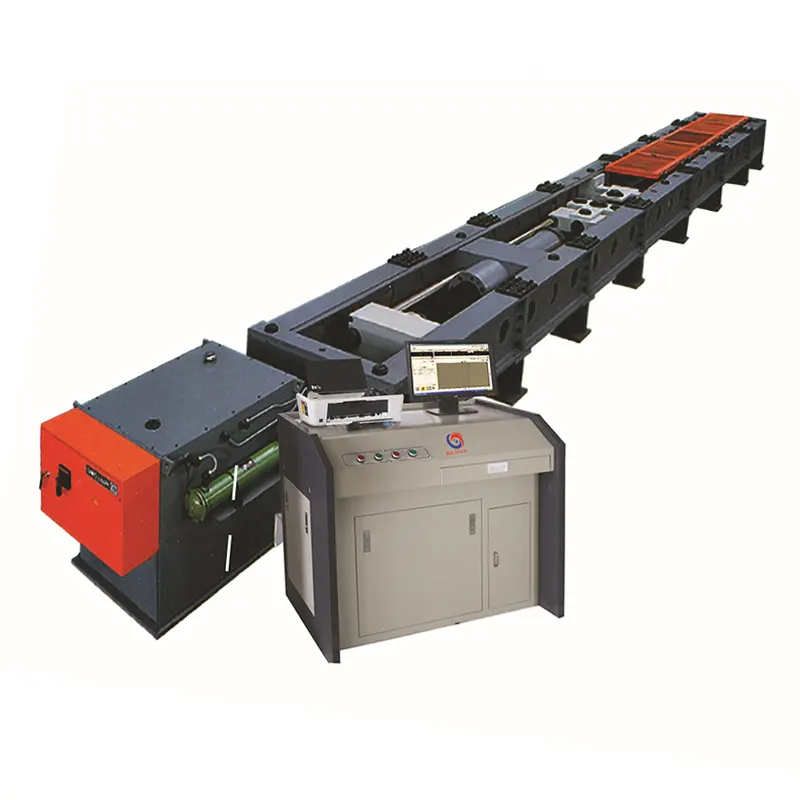

Derui Hydraulic Horizontal Tensile Testing Machine – Precision Testing for Long Materials
The Derui Hydraulic Horizontal Tensile Testing Machine is engineered for accurate, reliable tensile testing of long specimens like cables, wires, and wire ropes. It combines robust hydraulic power with advanced servo control to deliver precise results every time.
Key Benefits at a Glance
| Feature | Benefit |
|---|---|
| Up to 1000 kN Capacity | Handles heavy-duty tensile and break tests |
| Servo-Controlled Loading | Smooth, programmable load application |
| Adjustable Test Space (up to 10,000 mm) | Tests specimens of varying long lengths |
| Standards Compliance | Meets ASTM E8, ISO 6892, IEC 61089 |
| Customizable Setup | Adapt grips, frames, and fixtures to fit unique needs |
| Reliable & Durable Design | Ensures long service life and consistent results |
Whether you work in cable manufacturing, power utilities, or construction, this hydraulic horizontal tensile tester provides the accuracy and flexibility you require. Its compliant design makes it suitable for critical applications requiring ASTM, ISO, or IEC testing standards.
By integrating advanced controls and a spacious test area, the Derui Hydraulic Horizontal Tensile Testing Machine simplifies testing of long, heavy specimens — saving you time and improving data reliability with every pull.
Detailed Product Description
Our Derui Hydraulic Horizontal Tensile Testing Machine is built tough to handle the demands of testing long materials accurately and reliably. At its core, the system features a robust single-rod double-acting cylinder designed for consistent, smooth force application. The cylinders are honed to tight tolerances, and we use imported seals to ensure long-lasting durability and leak-free operation—critical for dependable hydraulic performance.
The machine’s main components work seamlessly together:
- Frame & Structure: Heavy-duty steel frame with crack-controlled welding offers maximum stability and reduces vibration during tests.
- Hydraulic System: High-precision servo-controlled pump delivers stable loading with fast response times.
- Measurement & Control: Nickel-plated load cells and accurate displacement sensors provide real-time, reliable data.
- Software Integration: User-friendly software interfaces with data logging, test control, and compatibility for third-party analysis tools.
Performance is a key focus. We built in safety valves and limit sensors to prevent overload and protect both users and equipment. This ensures smooth operation even under heavy loads, giving you consistent test results with minimal downtime.
Technical Specifications
Model Variants and Parameters
| Model | Max Capacity (kN) | Max Test Length (mm) | Stroke (mm) | Weight (lbs) |
|---|---|---|---|---|
| DR-L203-100 | 100 | 3,000 | 300 | 2,000 |
| DR-L203-300 | 300 | 6,000 | 500 | 4,500 |
| DR-L203-600 | 600 | 10,000 | 700 | 7,000 |
Our lineup covers a broad range, from lighter-duty tests with the WAL-100 to heavy industrial needs with the WAL-600, all designed for long specimen testing.
Standards Compliance
The Derui Hydraulic Horizontal Tensile Testing Machine meets key industry standards including:
- ASTM E4 (Standard Practices for Force Verification)
- ISO 7500-1 (Metallic Materials – Verification of Static Testing Machines)
- EN 10002-2 (Tensile Testing of Metallic Materials – Method of Test)
This ensures reliable, repeatable results that match your industry’s quality control requirements.
Customization Options
Tailor your hydraulic horizontal tensile tester for your exact needs with options such as:
- Extended frames for specimens beyond standard lengths
- Hydraulic wedge grips to securely hold cables, wires, ropes
- Vibrophores integration for dynamic fatigue and cyclic testing
These enhancements make it easier to test complex materials like conductor cables or wire ropes with precision.
Whether you need a low-profile machine for overhead conductor tensile tests or a high-capacity rig for break tests on nylon ropes, our models and options cover your testing demands.
Applications and Use Cases
Our hydraulic horizontal tensile testing machine is built for industries where strength and reliability matter. It’s widely used in:
- Cable & wire manufacturing – ensuring cables and wires meet strict tensile and fatigue standards.
- Power utilities – testing overhead conductors and ACSR cables for performance under load.
- Maritime sector – evaluating wire ropes and chains used in offshore rigs and ships.
- Construction – verifying materials used in structural and safety applications.
Common Test Types
- Tensile strength tests to measure maximum load capacity.
- Proof load tests to verify material can withstand safety margins.
- Break tests perfect for nylon ropes, steel wires, and other long specimens.
- Cyclic fatigue tests for durability over repeated stress.
Real-World Use Cases
- Testing wire ropes on offshore rigs to guarantee safety under harsh conditions.
- Measuring strain on horizontal conductors in power transmission lines.
- Quality checks on long cables used in industrial setups.
This practical machine handles long specimens up to 12 meters and combines accuracy with efficiency, making it a go-to for U.S. industries that demand dependable tensile testing results.
Features and Advantages of the Hydraulic Horizontal Tensile Testing Machine
Our hydraulic horizontal tensile testing machine is built to handle your toughest testing jobs with ease. Here’s why it stands out:
Versatility
- Handles specimens up to 12 meters long—perfect for cables, wires, and long materials.
- Supports multiple load modes including tensile, proof, and break tests.
Precision Engineering
| Feature | Description |
|---|---|
| Pistons | Chrome-plated for smooth, wear-resistant operation |
| Load Cells | Nickel-plated with ±1% accuracy for reliable data |
| Measurement Accuracy | High precision ensures test results meet ASTM, ISO standards |
Ease of Use
- Simple handheld controls for quick setup and operation.
- Built-in oil cabinet keeps the hydraulic system compact and well-maintained.
Safety and Durability
- Includes overload protection and emergency stop features.
- Rugged crack-controlled steel frame ensures long-term toughness.
- Equipped with safety valves and sensors for stable loading and operator safety.
Efficiency Gains
| Benefit | Details |
|---|---|
| Data Logging | Fully automated for effortless reporting |
| Software Compatibility | Works with third-party testing software for smooth integration |
This machine delivers reliability, precision, and ease—designed for U.S. labs and production lines that demand top-quality tensile testing.
Accessories and Fixtures for Hydraulic Horizontal Tensile Testing Machine
We offer a range of accessories and fixtures designed to boost your testing workflow and fit perfectly with the Derui hydraulic horizontal tensile testing machine.
Grip Options
- Hydraulic grips for strong, consistent holding on wires, cables, and rods
- Compression platens suitable for flattening or crushing tests
Add-Ons
- Extensometers to measure strain accurately
- Printers for instant test reports
- Modular actuators for fatigue and cyclic testing
Compatibility
All accessories are calibrated to match Derui’s machine frame and control systems, ensuring smooth integration and accurate results without extra setup hassle.
| Accessory Type | Use Case | Key Feature |
|---|---|---|
| Hydraulic grips | Wire rope, cable, long specimens | Strong, reliable hold |
| Compression platens | Compression tests | Durable, easy to swap |
| Extensometers | Strain measurement | High precision, digital-ready |
| Printers | Test report output | Fast, clear printed data |
| Modular actuators | Fatigue or cyclic tests | Versatile, easy to attach |
These fixtures and add-ons make testing flexible and efficient—perfect for US industries needing reliable, precise results on long or tricky specimens.
Quality Assurance and Compliance
Our Derui Hydraulic Horizontal Tensile Testing Machine is built to meet the highest quality standards. Every unit is manufactured under an ISO 9001 certified process, ensuring consistent reliability and durability. Before shipping, each machine goes through 100% load testing to guarantee peak performance right out of the box.
We back our equipment with a solid 2-year warranty on parts and labor, plus free lifetime software updates so your system stays current and efficient. The machine carries the CE mark, confirming it meets strict safety and performance regulations.
For precision you can trust, all load measurements come with NIST traceable calibration, which aligns with U.S. testing standards and makes your results credible for official use.
In short, we deliver a dependable horizontal hydraulic UTM built for long-term, hassle-free operation.
Customer Testimonials and Resources
Our Derui Hydraulic Horizontal Tensile Testing Machine has earned praise from industry pros across the U.S., especially for its precision and reliable performance. Users in cable manufacturing, power utilities, and maritime sectors highlight how it simplifies tough tests like wire rope tensile testing and overhead conductor strain evaluations.
What customers say:
- “The accuracy and ease of use on this horizontal hydraulic UTM are unmatched for our long specimen tests.”
- “It’s saved us time and improved safety during cyclic fatigue and proof load tests.”
- “Durable and dependable—perfect for our offshore wire rope break tests.”
Helpful resources ready for download:
- Detailed spec sheets
- Step-by-step installation guides
- User manuals for quick troubleshooting
Explore media:
- Product demos showcasing loading and testing
- Photo galleries of setups in real-world applications
These tools help you get the most out of our hydraulic horizontal tensile testing machine, ensuring smooth operation and fast training for your team.
Get in Touch Today
Ready to find the perfect hydraulic horizontal tensile testing machine for your needs? Reach out using our easy contact form—just share your required capacity, industry, and any custom specs.
Quick actions:
- Schedule a demo
- Request pricing
- Find a local distributor
We serve customers across the U.S. and worldwide, with fast, reliable shipping straight from our Jinan facility. Let’s get your testing setup running smoothly.
